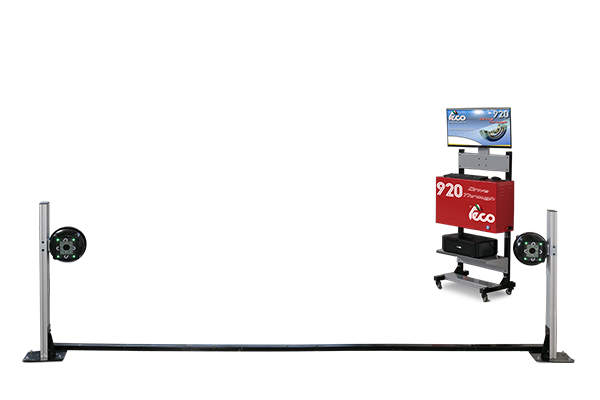

Teco 920 Drive Through

Wheel alignment and pre-check DRIVE-THRU for cars and light duty vehicles.
Accurate, reliable, quick, easy, comprehensive and affordable.

Electronic wheel aligner with programs developed in Multilanguage Windows 10 IoT environment and measurement technology with 2 high-resolution digital cameras.
Used by professionals for the detection and calculation of all wheel alignment angles of cars and vans, the TECO 920 Drive-Through wheel aligner is equipped with:

• 4 visual shockproof Targets
• 4 locking clamps with capacity from 11" to 26"
• PC trolley
• keyboard and printer
• primary database including over 84,000 vehicles
• software for professional wheel alignment.
The product is supplied as standard in the «Full-Pack» version complete with Intel PC.

The wheel aligner is compatible with the new universal system.

Technical data

Total toe	± 20°
Semi-toe	± 10°
Camber	± 10°
Caster	± 30°
Kingpin	± 30°
Set back	± 22°
Thrust angle	± 10°
Steering angle difference	± 20°
Power supply voltage	115/230 Vac - 50/60 Hz - 1 Ph
Power consumption	500 W

The wheel aligner is compatible with the new PROADAS universal system used for the calibration of driver assistance systems on new-generation vehicles. Using the wheel aligner cameras, the system for calibrating the camera and radar on board the vehicle can be aligned precisely and quickly.
Manufacturers recommend calibrating ADAS systems after aligning the vehicle. For further information, visit the PROADAS product sections on our website.

Measuring technology of characteristic angles by means of 2 high-resolution digital cameras.
Visual targets conceived without any electronic component which do not require any calibration activity.
